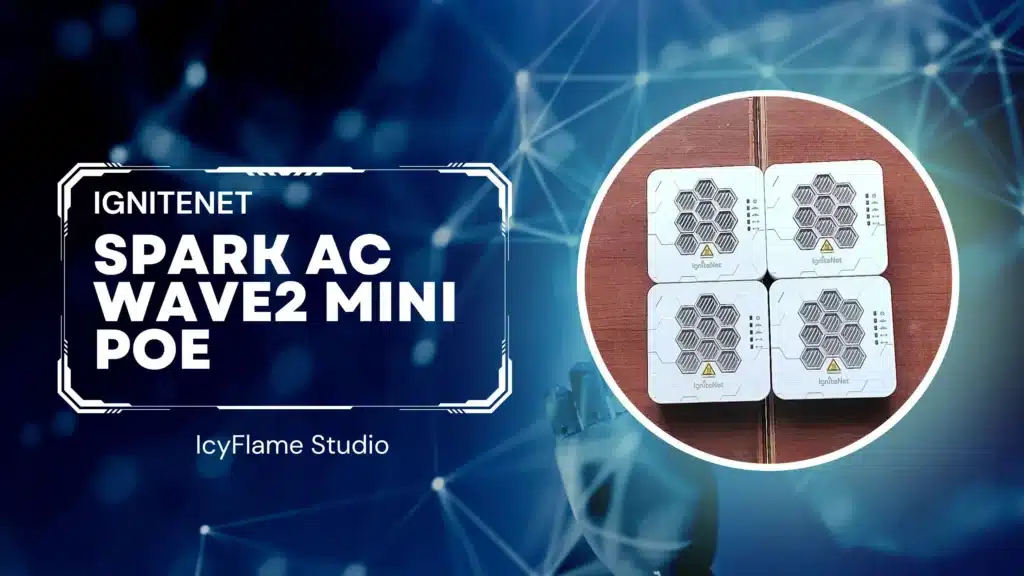

Name: Spark AC Wave2 Mini PoE
Brand: IgniteNet

The IgniteNet Spark AC Wave2 Mini PoE is a compact and powerful Dualband Concurrent Enterprise Wireless Access Point (WAP) that is powered by POE.

The SP-W2M-AC1200-POE access point is designed to meet the needs of small to medium-sized businesses, hotels, and other places that require high-performance wireless Networks.

This WAP is also equipped with advanced features such as beamforming, MU-MIMO, and advanced Quality of Service (QoS) to ensure reliable and fast wireless connections for users.

Related: UniFi Mobile Router

Spark AC Wave2 Mini PoE

One of the key features of the Spark AC Wave2 Mini PoE is its use of Power over Ethernet (PoE) technology. This allows the access point to be powered through a standard Ethernet cable, eliminating the need for an additional power outlet. This makes the Wave2 Mini PoE ideal for deployment in locations where power outlets are limited or hard to access.

The Wave2 Mini PoE also supports the latest Wi-Fi standards, including 802.11ac Wave 2, which provides faster speeds and greater capacity than previous generations of Wi-Fi. This makes it ideal for environments where multiple users are connected to the network simultaneously, such as in a hotel or conference center.

ignitenet spark ac wave2 mini poe access point

The Wave2 Mini PoE also includes advanced features such as beamforming, which improves the range and reliability of wireless connections by directing the Wi-Fi signal toward connected devices. This ensures that users receive a strong and stable wireless signal, even in areas where the signal may be weak.

Another advanced feature of the Wave2 Mini PoE is MU-MIMO, which allows multiple devices to connect and transmit data simultaneously. This improves the overall performance of the wireless network and reduces congestion.

In addition to these advanced features, the Wave2 Mini PoE also includes advanced Quality of Service (QoS) capabilities, which allow administrators to prioritize traffic and ensure that critical applications receive the bandwidth they need. This is particularly useful in environments where certain applications, such as voice or video, require a higher level of performance.

Unboxing

Features

Cloud-based management for ease of use and central control
Dual-band support for 2.4GHz and 5GHz frequencies
MU-MIMO technology for improved network efficiency
Beamforming for improved coverage and signal quality
Has Simple Mounting Options
Supports Internet Service Providers and Enterprise type networks
WPA3-Enterprise security for secure wireless connections
Power over Ethernet (PoE) for easy installation and reduced cabling requirements
Gigabit Ethernet ports for high-speed wired connections
Has Stand-alone or Cloud-controlled operating modes
Supports AP/Client/Client WDS modes with Flexible Bridging and Routing
Can broadcast up to 8 SSIDs per radio
IEEE 802.11e Wi-Fi Multimedia (WMM-QoS)

Specifications

Feature	Specification
MODEL	SP-W2M-AC1200-POE
HARDWARE	› Dual flash image support › Integrated Bluetooth 2.1/4.1
LEDs	› Power, Wireless 2.4Ghz, Wireless 5.8Ghz, ETH 1, ETH 2
DIMENSIONS (L x W x H )	› 83 x 64 x 22 mm (3.27 x 3.31 x 0.87 inch)
WEIGHT	› 108 g (0.24 lb)
POWER	› 802.3af/at Power over Ethernet
OPERATING ENVIRONMENT	› Operating Temperature: 0 to +50Cº (32 to 122 F) › Store Temperature: -40 to 70Cº (-40 to 158 F)
REGULATORY / STANDARDS COMPLIANCE	› FCC/IC › CE
RF PERFORMANCE (TX)	› 2.4 GHz: 25 dBm @ 6Mbps, 18 dBm @ 300Mbps › 5 GHz: 23 dBm @ 6Mbps, 13 dBm @ 866Mbps
RF PERFORMANCE (RX)	› 2.4 GHz: -90 dBm @ 6Mbps, -73 dBm @ 300Mbps › 5 GHz: -90 dBm @ 6Mbps, -58 dBm @ 866Mbps
ANTENNA	› 2.4 GHz: 4 dBi omnidirectional › 5 GHz: 5 dBi omnidirectional
APPLICATIONS	› Enterprise AP › Managed WiFi Services › WiFi Extension › Hotspot

Spark AC Wave2 Mini PoE Specification

Conclusion

Overall, the Spark AC Wave2 Mini PoE is an excellent choice for businesses and other venues that require high-performance wireless coverage. Its advanced features and use of PoE technology make it easy to deploy and manage, and its support for the latest Wi-Fi standards ensures that users receive the best possible wireless performance.
